Window Electric DC24V CHAIN Actuator
Model Number: PSAT01DC007
CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)
- Product Description
- Details
- Packaging & Shipping

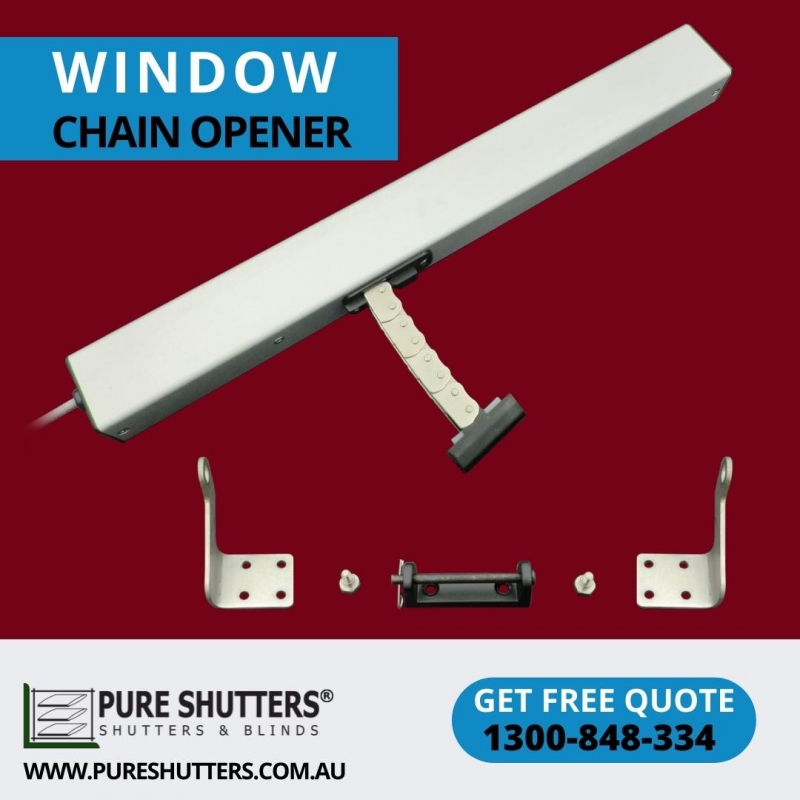

Window Electric DC24V Chain Actuator
PSAT01 DC24V 250N
STROKE LENGTH: 50mm to 300mm
Application :
- Commercial building adjustable blinds window
- Schools blinds electric
- Exhibition halls blinds glass
- Industrial buildings electric window
- Warehouses louvers aluminum
- aluminum door with Electric motor
- Fire shutter
- Fire smoke exhaust shutter
-Window fire shutters
-Sound proof shutters
-Motorised Shutters windows
- Window winder
- Metal shutters
- Home security shutters ,
- Electric shades shutter
- Horizontal Jalousie
Specifications :
Operating Voltage : 24V DC +/- 10% ,
Maximum Operating Current : 0.8A to 1.2A
Reliability tests carried out : 30,000 cycles
Chain Winder or Chain Actuator accessories :
- Remote control unit
- Emergency button switch
- Emergency push button
- Emergency key
- Emergency stop button
- Alarm button
- Wall switch
- Single controller
- Motor control unit
- Power controller
- External synchroniser
- Electronic switch buton
- Timer and other custom made controls

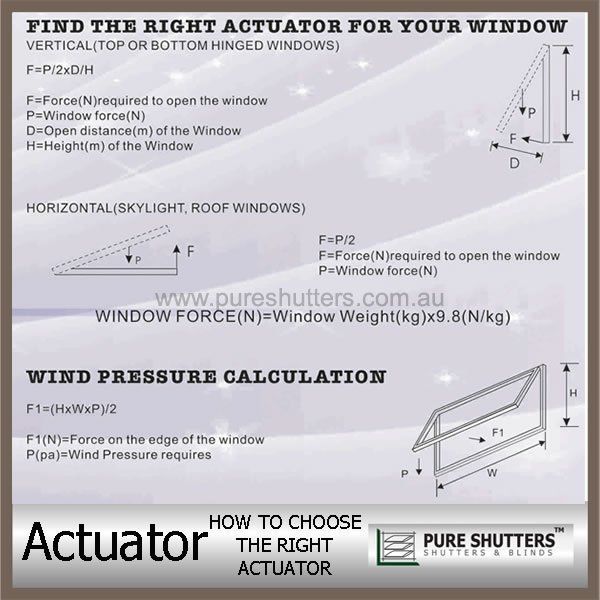

How to choose the right Window Electric 12V 24V Mini Linear Actuator
FREE AIR FREIGHT TO AUSTRALIA ONLY***
3 to 4 Weeks Delivery
CALL: 1300 848 334
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: PURE SHUTTERS
- Model Number: PSAT01DC007
- Product Name: Window motor 24V linear actuator for glass
- Operating Voltage: DC 24V Electric motor drive
- Maximum Operating Current: 0.4A to 1.2A
- Force: 250N
- Stroke distance: 50 to 300mm
- Speed: 10mm/sec
- Ambient temperature: -20 to +75 Degrees Celcius
- Accessories: Crank arm,Torque arm and connectors
- Color: Natural Anodise or custom made colors
- Actuator diameter: 36mm minimum or custom made sizes
