Celos 152mm Security Jalousie Shutters

Security Jalousie with blade holders suited for 152mm wide Aluminium, Glass or Timber blades. Operable Handle to adjust blade

window security shutters

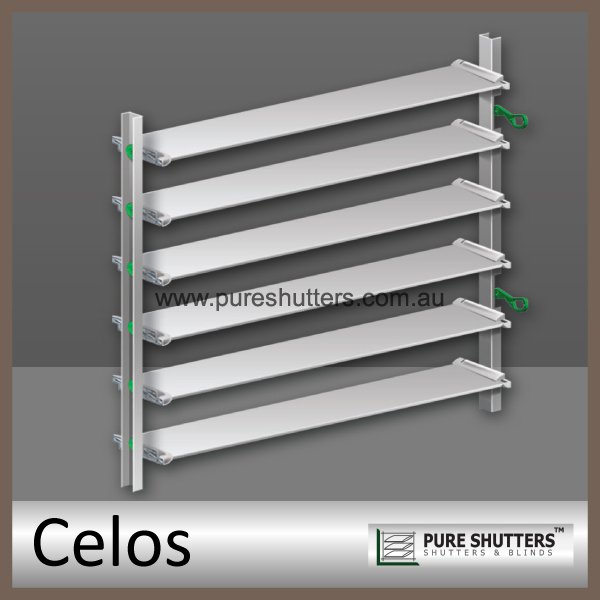

Celos 152mm Aluminum Security Jalousie Shutters



 Also called Celos 152mm or 6 inch  - Glass shutters

or Celos 152mm or  6 inch Aluminum Louvre frame

Product Description



BLADE END CAPS :

UV resistant , CUSTOM MADE "PE ALLOY"



BLADE HANDLE 110mm :

UV resistant , CUSTOM MADE "NYLON ALLOY"



No.of Blades per Handle  : Minimum Two blades, Maximum Nine Blades



Aluminium U Channel 38x20 mm & Cross Bar handle :

Extruded from 6063,

Manufactured to AS/NZS 1866

Powder coating and Natural anodise finishings

in align with AS3715:2002 and AS1231:2000



Other componentries :

Stainless steel grade 304 Screws,Washer ,Rivet & Clips

Aluminium Bolts or Brass Bolts(optional)



Blades :

6mm Aluminium Hollow blades

6 to 6.38mm Toughened & Laminated Glass

Timber : Available upon request



Standard Color finishes :

Powder coat >60 micron - Standard White Satin , Black Satin

Natural Anodised >18 mircon

Custom made finishes available upon request



RHS Frames (Optional) :

RHS supplied by others or available upon request



U Channel Assembly into frame :

Pre-punched holes on U Channel for ease of

screwing into frame



304 Grade Stainless steel Screws

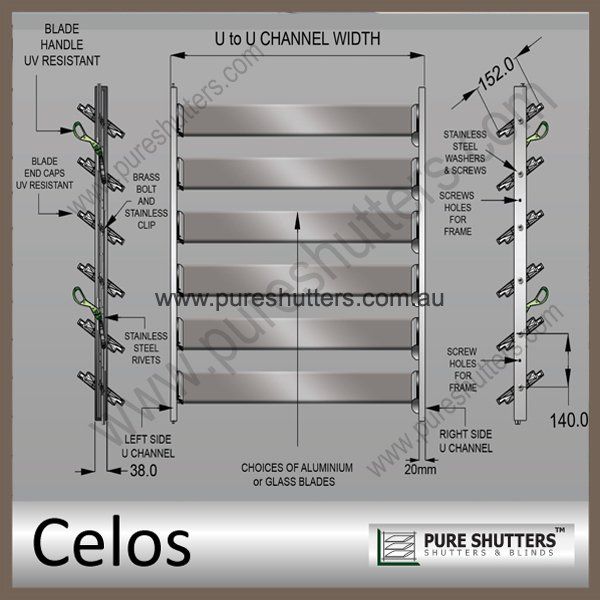

Blade Cutting Deductions : U to U Channel WIDTH less 55mm

Tolerance +/-1mm, Depends on how tight when operating

the blade handle .



A. CELOS MOUNTED INTO OUTSIDE FRAMES :



Features:

 -CELOS SPECIAL PLASTIC ALLOY BLADE END CAPS AND HANDLE

-VARIABLE PLASTIC HANDLE LOCATIONS AND ADJUSTABLE BLADE ANGLES

- FOR NATURAL LIGHT REFLECTION , AIR VENTILATION , PRIVACY OR VIEWING ANGLE

-CELOS LOCKABLE HANDLE FOR SECURITY PURPOSES AND WATER TIGHT

- CELOS WITH SELF DRAINING BLADE END CAPS THAT KEEPS RAIN WATER AWAY
