YERO Electric motor roof
Shutters
Model Number: YEK 188
CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)
- Product Description
- Details
- Packaging & Shipping
Yero Electric Motor roof for automatic ventilation with 24VDC electric motor ,Remote control and optional rain sensor

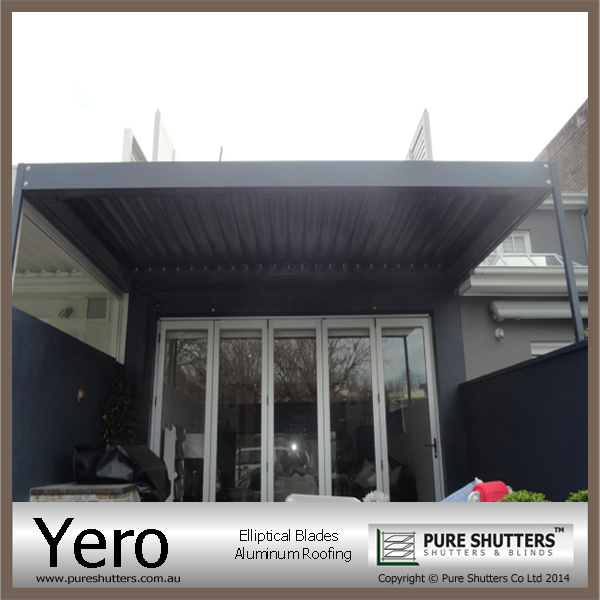

YERO ROOF -Aerofoil blade, Aluminum Electric Motor Roof
BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.
BLADE SIZES : 188mm
Aluminium alloy : AL6063 T5 or T6 , Powder Coated or Natural anodise finishings.
Aluminium Frame size : 210x55
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000
Complete with Gutter and Corner spout for downpipe
Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips
Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request
A. YERO ROOF Electric Ventilation louvers or Electric shades shutter with built in Electric motor
B. Remote controlled or Wall switch control ,complete with built in Electric Motor 24V
C. Combination of Yero Roof and Yero Shade to provide automatic ventilation
D. Complete with Gutter and Rain spout for down pipe :
E. YERO ROOF SUPPLIED IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT INTO 20' or 40' CONTAINER
- Type: Shutters
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: PURE SHUTTERS
- Model Number: YEK188
- Material: Aluminum Alloy
- Opening Pattern: Horizontal
- Blade Type: Aerofoil shape or Half Aero blade
- Blade End plates: Aluminium
- Blade sizes: 188mm
- Blade Material: Aluminium Alloy AL6063 T5
- Operation: Remote control or Wall switch
- Optional accessories: Rain sensors
- Applications: Shading , Privacy , Ventilation,Sun blocker
- Finishings: Powder coating 60 microns and Natural anodise 20 microns
