YERO SHADE YS002001 Electric Aluminum louver
Shutters
Model Number: YERO SHADE -YS002001
CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)
- Product Description
- Details
- Packaging & Shipping

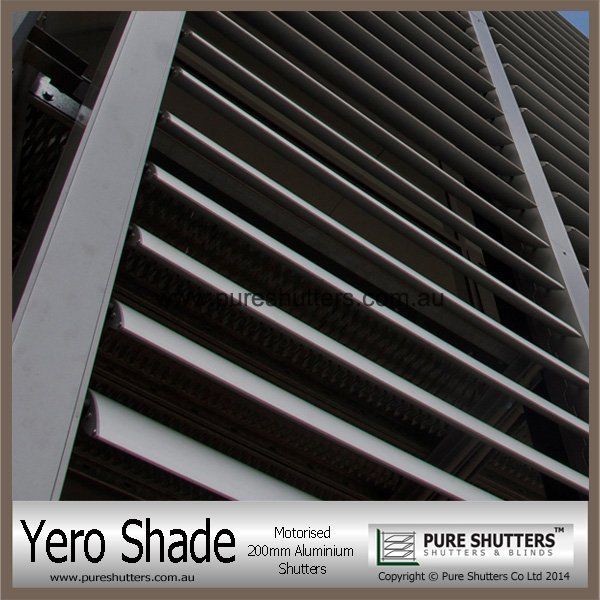

Yero Shade YS002001 Electric Aluminum Louver
Exterior application for ::
Privacy shutter
Sun Shade
Window shutters
Sun
YERO SHADE YS002001-Electric Aluminum Louver
Also called
Yero Shade -Motorised Electric Window Shutters
Yero Shade -Motorised Aluminium Shutter
Yero Shade Electrically Operated Aluminum Shutters
Yero Shade Motorised Electric Sun Shade Aluminum Louvers
Product Description
BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.
BLADE SIZES : 115mm, 150mm,200mm ,300mm
Aluminium alloy : AL6063 T5 or T6 , Powder Coated or Natural anodise finishings.
Aluminium Frame size : 97x40 RHS
Extruded from 6063,T5 or T6
Manufactured to AS/NZS 1866 and AS1231:2000
Blade Orientation Options :
Horizontal Shutter
Vertical Shutter
Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips
Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request
A. YERO SHADE -Aero blade ,Electric Aluminum Louver
B. MANUALLY OPERABLE OR MOTORISED,COMPLETE WITH OUTSIDE FRAME
C. REMOTE CONTROLLED OR WITH WALL SWITCH ,COMPLETE WITH MOTOR CONTROL UNIT and Optional Rain sensor
D. YERO SHADE CAN BE IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT INTO THE 20' or 40' CONTAINER
MULTIPLE APPLICATIONS :
Window shutters
Louvered Windows
Louver Roof
Security Shutters
Sun Shade Louvers
Louver Door
Sun Louver
WIndow Louver
Ventilation Grilles
Air Grille
Motorised Exterior Aluminium Shutters
Ventilation louvers
Aluminum window louver
- Type: Shutters
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: PURE SHUTTERS
- Model Number: YERO SHADE -YS002001
- Material: Aluminum Alloy
- Opening Pattern: Horizontal
- Blade Type: Aerofoil shape
- Blade End plates: Aluminium
- Blade sizes: 115mm,150mm,200mm,300mm
- Blade orientation: Horizontal or Vertical
- Blade Material: Aluminium Alloy AL6063 T5
- Operation Type 1: Hand operated
- Operation Type 2: Wall switch and/or Remote control
- Optional accessories: Rain sensors
- Applications: Shading , Privacy , Ventilation,Security
- Finishings: Powder coating 60 microns and Natural anodise 20 microns
